Descrizione
| Dati Tecnici: | |
|---|---|
| Passo | : 428 |
| Tipo di fissaggio | : Innesto piccolo |
| Diametro interno minimo | : 19.5 mm |
| Diametro interno massimo | : 22.5 mm |
| Denti interni (numero di denti) | : 13 |
| Numero di bulloni di fissaggio | : Without drill hole |
| Larghezza | : 11.5 mm |
| Tipo di Catena | : Standard |
| Produttore | : JT |

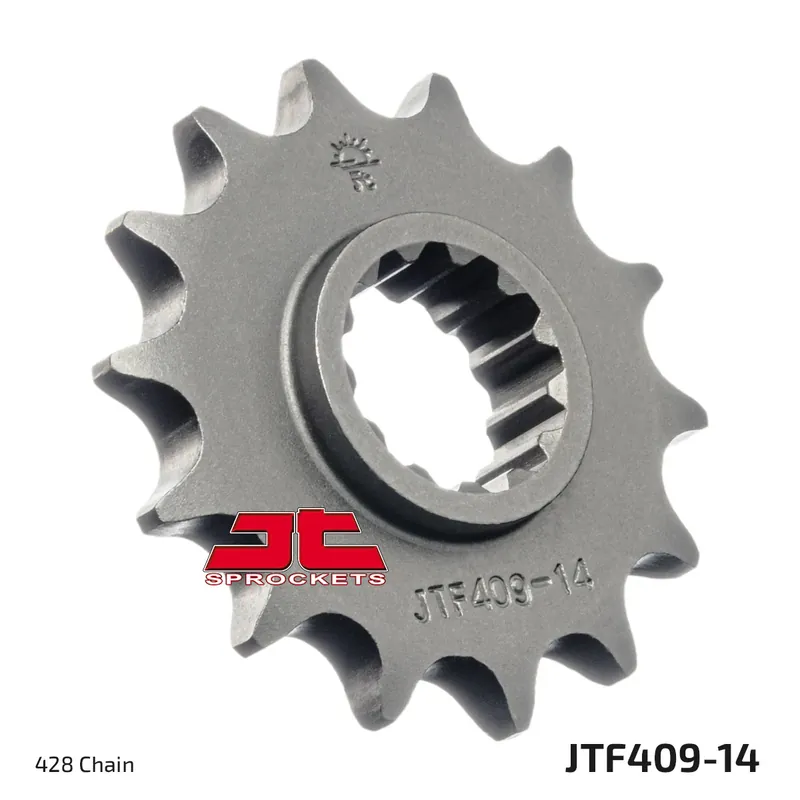

Il pignone JTF409 è compatibile con:
Suzuki DR 125 S F SF43A SF43A-100001 SF43A-100655 1985 1 12,5 BHP, 9 kw
Suzuki DR 125 S H SF43A SF43A-100656 SF43A-101005 1986 1 12,5 BHP, 9 kw
Suzuki DR 125 S J SF43A SF43A-101006 - 1987 1 12,5 BHP, 9 kw
Suzuki DR 125 S J SF43A SF43A-101006 - 1988 1 12,5 BHP, 9 kw
Suzuki DR 125 S J SF43A SF43A-101006 - 1989 1 12,5 BHP, 9 kw
Suzuki DR 125 S J SF43A SF43A-101006 - 1990 1 12,5 BHP, 9 kw
Suzuki DR 125 S J SF43A SF43A-101006 - 1991 1 12,5 BHP, 9 kw
Suzuki DR 125 S J SF43A SF43A-101006 - 1992 1 12,5 BHP, 9 kw
Suzuki DR 125 S J SF43A SF43A-101006 - 1993 1 12,5 BHP, 9 kw
Suzuki DR 125 S J SF43A SF43A-101006 - 1994 1 12,5 BHP, 9 kw
Suzuki DR 125 S F SF43B SF43B-100001 SF43B-103041 1985 1 12,5 BHP, 9 kw
Suzuki DR 125 S H SF43B SF43B-103042 SF43B-104349 1986 1 12,5 BHP, 9 kw
Suzuki DR 125 S J SF43B SF43B-104350 - 1987 1 12,5 BHP, 9 kw
Suzuki DR 125 S J SF43B SF43B-104350 - 1988 1 12,5 BHP, 9 kw
Suzuki DR 125 S J SF43B SF43B-104350 - 1989 1 12,5 BHP, 9 kw
Suzuki DR 125 S J SF43B SF43B-104350 - 1990 1 12,5 BHP, 9 kw
Suzuki DR 125 S J SF43B SF43B-104350 - 1991 1 12,5 BHP, 9 kw
Suzuki DR 125 S J SF43B SF43B-104350 - 1992 1 12,5 BHP, 9 kw
Suzuki DR 125 S J SF43B SF43B-104350 - 1993 1 12,5 BHP, 9 kw
Suzuki DR 125 S J SF43B SF43B-104350 - 1994 1 12,5 BHP, 9 kw
Suzuki DR 125 SE S SF44A SF44A-101539 SF44A-102278 1995 1 12,1 BHP, 9 kw
Suzuki DR 125 SE T SF44A SF44A-102279 SF44A-104704 1996 1 12,1 BHP, 9 kw
Suzuki DR 125 SE, SEU V SF44A SF44A-104705 - 1997 1 12,1/11.8 BHP, 8,9/8,7 kw
Suzuki DR 125 SE, SEU W SF44A SF44A-000500001 SF44A-000502880 1998 1 12,1/11.8 BHP, 8,9/8,7 kw
Suzuki DR 125 SE, SEU X SF44A SF44A-000502881 - 1999 1 12,1/11.8 BHP, 8,9/8,7 kw
Suzuki DR 125 SE, SEU X SF44A SF44A-000502881 - 2000 1 12,1/11.8 BHP, 8,9/8,7 kw
Suzuki DR-Z 125 L K7 DF43B DF43B-72100001 - 2007 1 12 BHP, 8,8 kw
Suzuki DR-Z 125 L K8 DF43B DF43B-82100001 DF43B-82199999 2008 1 12 BHP, 8,8 kw
Suzuki DR-Z 125 L K9 DF43B DF43B-92100001 DF43B-92199999 2009 1 12 BHP, 8,8 kw
Suzuki DR-Z 125 L L0 DF43B DF43B-A2100001 DF43B-A2199999 2010 1 12 BHP, 8,8 kw
Suzuki DR-Z 125 L L0 DF43B DF43B-A2100001 DF43B-A2199999 2011 1 12 BHP, 8,8 kw
Suzuki DR-Z 125 L L0 DF43B DF43B-A2100001 DF43B-A2199999 2012 1 12 BHP, 8,8 kw
Suzuki DR-Z 125 L L0 DF43B DF43B-A2100001 DF43B-A2199999 2013 1 12 BHP, 8,8 kw
Suzuki DR-Z 125 L L0 DF43B DF43B-A2100001 DF43B-A2199999 2014 1 12 BHP, 8,8 kw
Suzuki DR-Z 125 L L0 DF43B DF43B-A2100001 DF43B-A2199999 2015 1 12 BHP, 8,8 kw
Suzuki DR-Z 125 L L6 DF43B DF43B-000500267 DF43B-000599999 2016 1 12 BHP, 8,1 kw
Suzuki DR-Z 125 L L7 DF43B DF43B-0H0500001 DF43B-0H0599999 2017 1 10 BHP, 7,2 kw
Suzuki DR-Z 125 L L7 DF43B DF43B-0H0500001 DF43B-0H0599999 2018 1 10 BHP, 7,2 kw
Suzuki DR-Z 125 L L7 DF43B DF43B-0H0500001 DF43B-0H0599999 2019 1 10 BHP, 7,2 kw
Suzuki DR-Z 125 L M0 DF43B DF43B-0L7100001 DF43B-0L7999999 2020 1 10 BHP, 7,2 kw
Suzuki DR-Z 125 L M1 DF43B DF43B-0M7500001 DF43B-0M7999999 2021 1
